Features
The ClearVision DR-7000 C-Arm system brings the full functionality of a hospital DR system without the cost and space of a hospital radiology room. Four degrees of motion and a rolling exam table allows positioning of the patient for any exam from extremities to orthopedic to emergency radiology.
The DR-7000 is a complete radiographic system, including a 17×17 Flat Panel Detector, Motorized C-Arm, 40kW or 50kW generator, radiographic grids, and rolling examination table. The DR-7000 is also available in a retrofit configuration for clinics that already have installed x-ray generators.

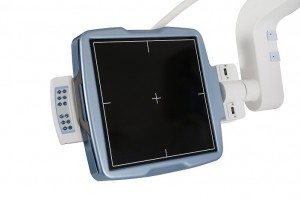

Flat Panel Specification
♦ Active image size: 17″x 17″ (43cm x 43cm)
♦ Image pixels: 3072 x 3072
♦ Bit depth: 14bits
♦ Pixel Pitch: 143Micron
♦ Spatial resolution: 3.5lp/mm
♦ Image aquisition time: less than 7 seconds
♦ Input power: 100-240VAC 50/60Hz
♦ Weight: Approx. 29lbsions
Feel-DRCS Acquisition Software
♦ Fully compatible with DICOM 3.0 standard
♦ Easy to use and learn
♦ Patient registration worklist support
♦ Predefined and custom Image processing modes
♦ Standard Image manipulation tools such as: Windows level, Zoom, Pan, Crop, Invert, Rotation
♦ Standard measure tools such as: Length, Angle, Cobb Angle
♦ Image labels and text annotations
♦ Ability to convert and export images, archive to PACS
♦ Optimized algorithms for each body part
♦ Prestaged exams sets up exam before patient arrives
♦ CD/DVD burning
♦ Image Stiching
♦ Database import/export
♦ Side to side multi-image comparison
