Features
DR4000 provides diagnostic quality imaging at an affordable cost for every practice and budget. The Clear Vision DR4000 is designed and equipped with high quality components to meet a practice’s needs for digital images.
Call us today to learn about how the DR4000 Veterinary System is unique when it comes to Digital Radiography. We believe in providing you with as much information as is necessary for you to make the right decision when purchasing DR.
Save money on consumables and wasted time while increasing throughput which will increase revenue
System Includes
♦ CCD Detector (6M, 9M or 16M )
♦ 32kW High Frequency Generator
♦ 12” Touch Screen Monitor
♦ X-ray tube
♦ Collimator
♦ 4 Way Float Table
♦ Tube Stand
♦ Acquisition Computer and Monitor
♦ Acquisition Software
♦ Computer Table
♦ Viewing Software
Specifications
CCD DETECTOR
Image pixels
Spatial resolution
Active image size
Bit depth: 14 bits
Acquisition time
Input power
- 6 Megapixels
- 2.8 lp/mm
- 14×17″
- 14 bits
- 8 sec.
- 100-240 VAC, 50/60 Hz
- 9 Megapixels
- 3.5 lp/mm
- 17×17″
- 14 bits
- < 10 sec.
- 100-240 VAC, 50/60 Hz
- 16 Megapixels
- 4.6 lp/mm
- 17×17″
- 14 bits
- < 8 sec.
- 100-240 VAC, 50/60 Hz
Generator
♦ High Frequency Generator
♦ Output: 32kW
♦ Vp Range : 40kVp – 125 kVp
♦ Ma range: 10- 400mA
♦ Remote Diagnosis Software for system via internet connection

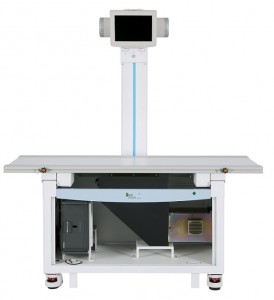

Standard 4-way veterinary table
♦ Free standing or floor to wall mount
♦ Four-way floating top table
♦ Easy installation and operation
♦ Touch Monitor (12”) Console
Acquisition Software
MAXvue is fully compatible with DICOM 3.0 standard, adopted by most commercial PACS systems. With this acquisition software, you can easily acquire and manipulate x-ray images that allow you to make diagnosis and see more patients.
Software Features
♦ Pre-register patient and create worklist for future exams
♦ Shortened registration process for urgent, unexpected exams
♦ All standard viewing and annotation tools including magnifying glass, window level, rotation and flipping, measurements, angles, region of interest, and test annotations
♦ 3.0 compliant
♦ Store, print or backup to other media (CD/DVD and external USB storage or PACS)
Image Processing
♦ Pre-programmed image processing, customizable to your preferences
♦ One-click application of your preferred image processing parameters
♦ Automatically apply image processing algorithms including: sharpening, denoising, contrast enhancement, gain correction, collimating and region of interest
♦ Always keep and have access to your raw images
♦ Export and import image processing parameters capability
